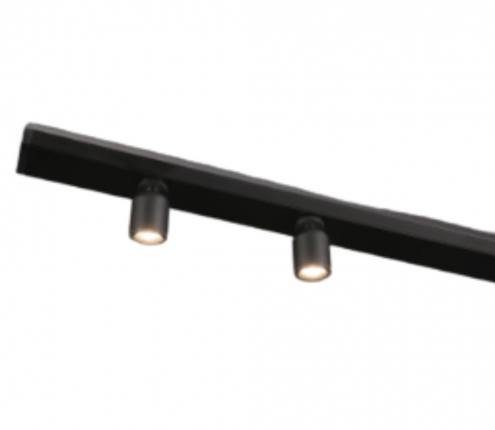

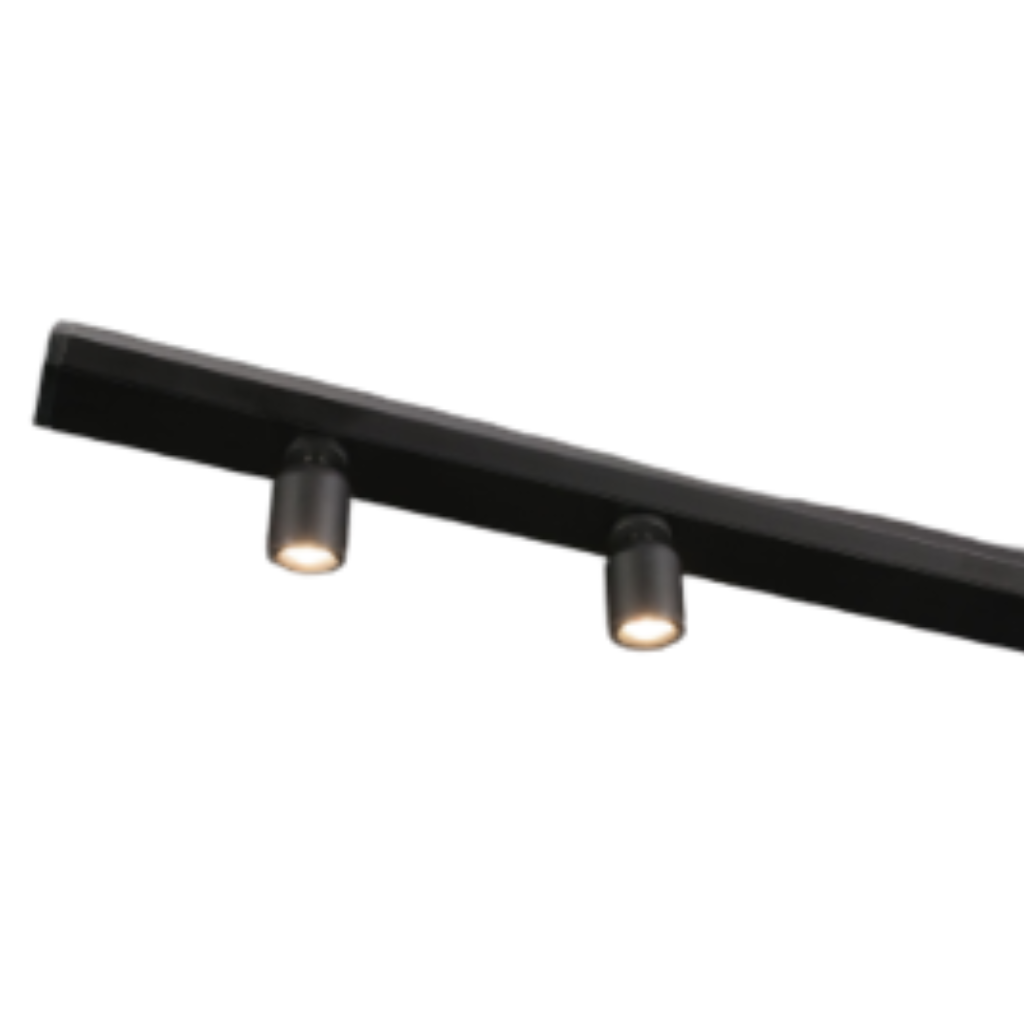

BACKWALL

Backwall is a modern backlighting system that highlights products from the background side, giving the entire arrangement greater depth and an elegant, refined character. Soft and even light subtly enhances the natural colors and details of the displayed objects, making the presentation more attractive and visually harmonious.

The use of backlighting significantly improves the clarity of the display and strengthens its aesthetic appeal. The system works perfectly in glass display cases, exhibition furniture, as well as other retail and exhibition spaces.

Backwall can be customized to meet individual project requirements, enabling the creation of cohesive and striking lighting arrangements across different types of installations.

Send enquiry

Technical data

Backwall

Technical Data - LED Module
Number of LEDs	4
Supply Voltage	12VDC
Current	200 mA
Power	2.4W
Color Temperature	3000K / 4000K
Luminaire Luminous Flux	92.4 lm
Beam Angle	90°
Operating Temperature	-10°C - 40°C
LED Lifetime	> 36000h
Protection Rating	IP20

Backwall 2

Technical Data - LED Module
Number of LEDs	7 / 14 / 21
Supply Voltage	20V
Current	250 mA / 7 LEDs 500 mA / 14 LEDs 700 mA / 21 LEDs
Power	4.9 W / 7 LEDs 9.85 W / 14 LEDs 13.8 W / 21 LEDs
Color Temperature	3000K / 4000K
Luminaire Luminous Flux	310 lm / 7 LEDs
Beam Angle	90°
Operating Temperature	-10°C - 40°C
LED Lifetime	> 36000 h
Protection Rating	IP20
